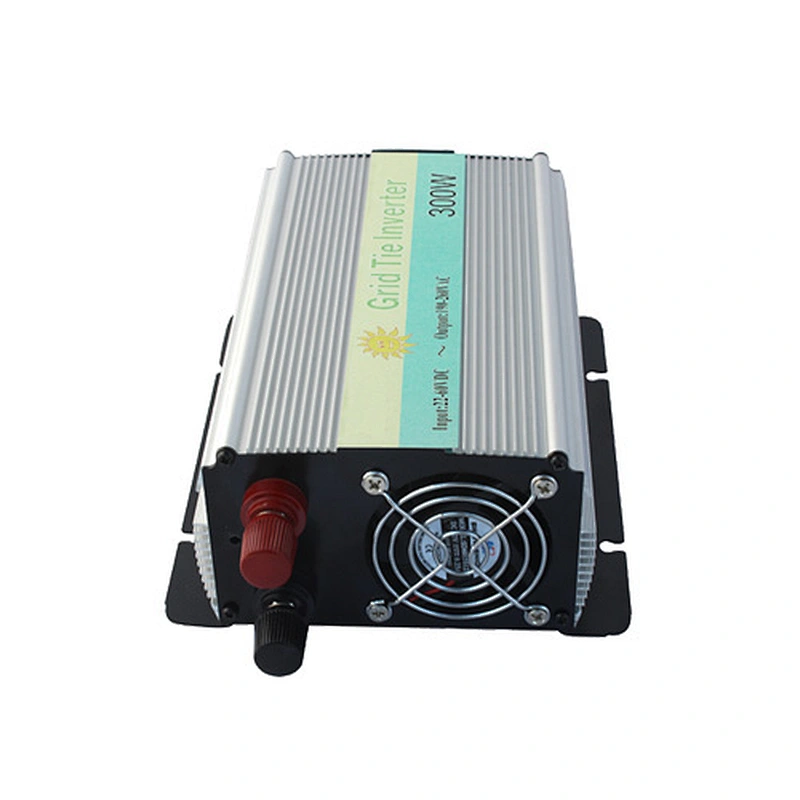

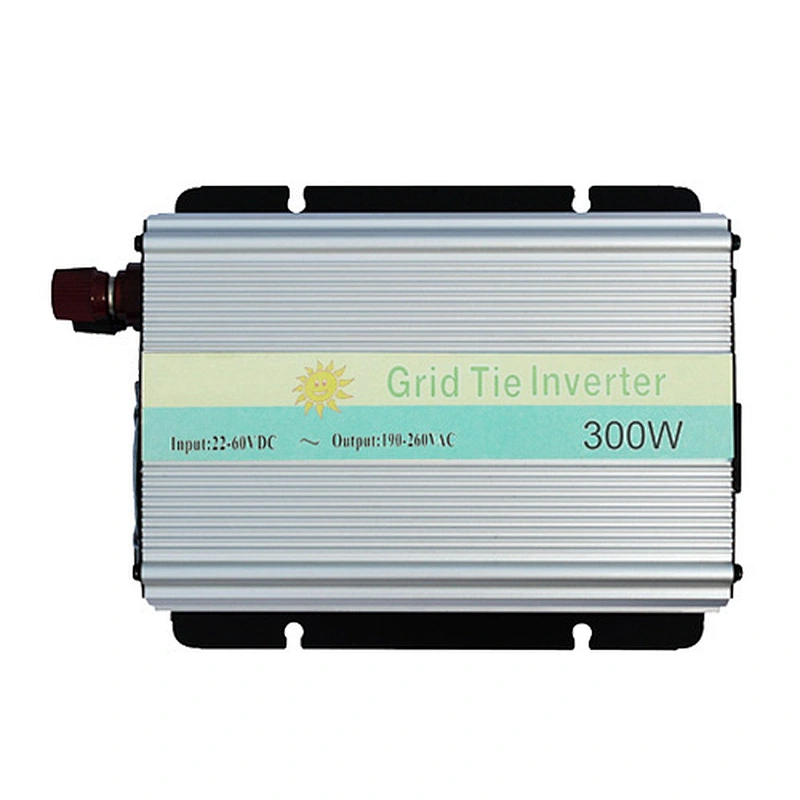

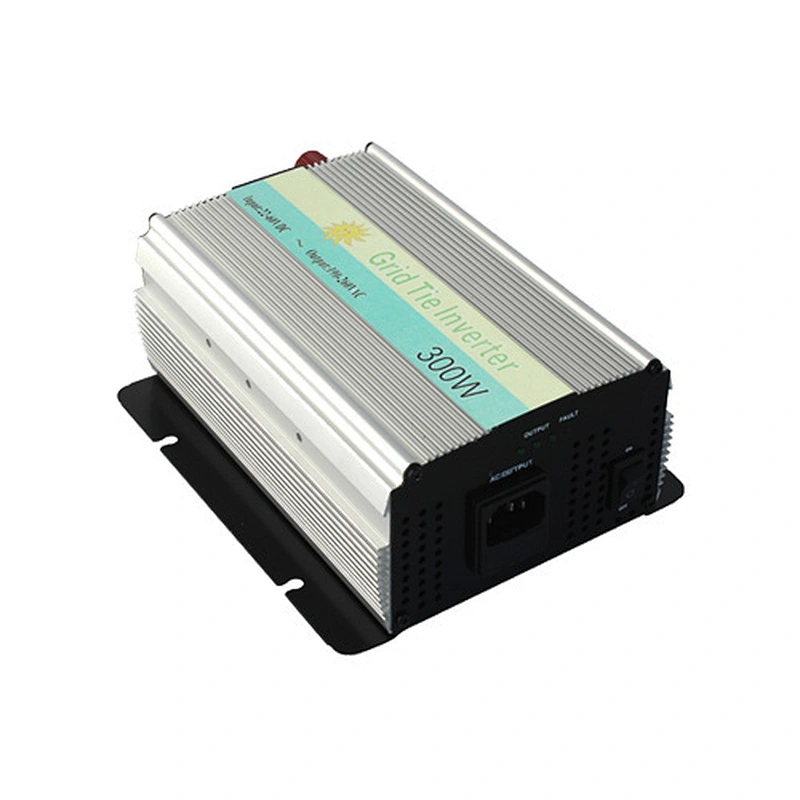

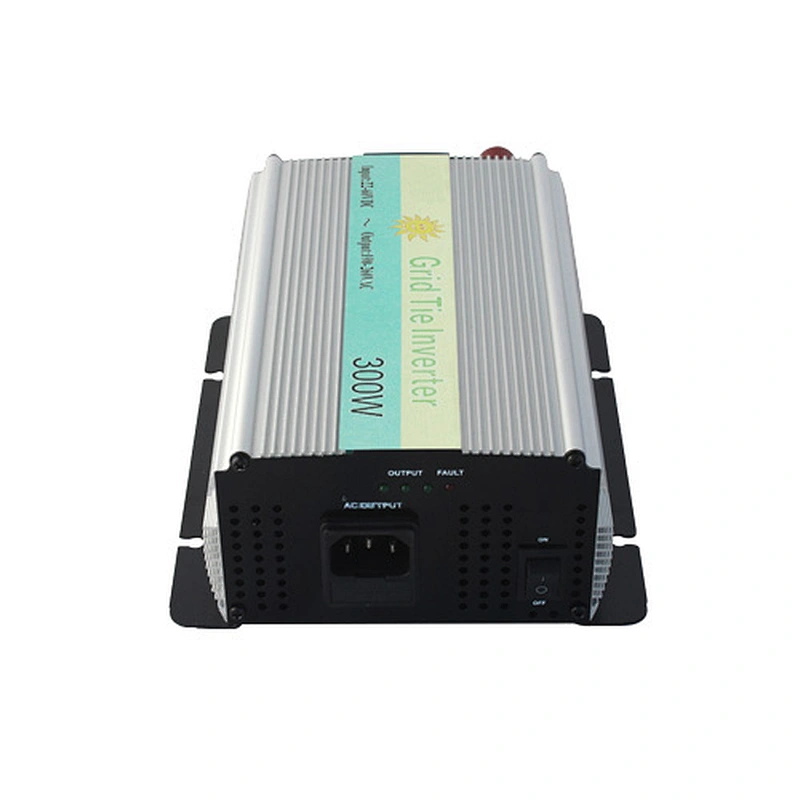

300W Grid Tie Inverter

Model NO.: 300W Grid Tie Inverter

Quantity:

Product Description

Product model：MK-300G
Input Voltage：10.8~30V/22~60VDC
Output Voltage：90V ~ 130V/190V ~ 260V
power：300W

Features：
• Perfect Pure Sine Wave Output Form
• DSP chip controlled
• High efficiency by using advanced IGBT
• High utilization of solar energy by using MPPT (Maximum Power Point Tracking) technology
• Aluminum radiator to guarantee long-term heat dissipation
• Perfect protection functions
• Protection of wrong polarity connection to avoid the damages by incorrect operation
• Full power output under harsh circumstance
• Anti-Islanding Protection
• Stackable (connect in parallel for higher output)
• Simple and safe installation

Model		MK-300G-241	MK-300G-481	MK-300G-242	MK-300G-482
Power of solar panels recommended		360Wp
Input	MPPT voltage range	DC 10.8~30V	DC 22~60V	DC 10.8~30V	DC 22~60V
Output	Normal AC Output Power	300W
	Maximum AC Output Power	350W
	AC Output Voltage Range	90V ~ 130V		190V ~ 260V
	Frequency	46Hz ~ 65Hz
	Phase	Single phase
	Power factor	0.99
	Max current	2.6A		1.3A
	THD	At rated power and the sine wave <5%
	Efficiency	92%
	Standby power consumption	<0.5W
Structure	Cooling method	Cooling Fan
	Noise	<30dB
Protection	Inverter	Input over voltage, output short circuit, overload overheat
	Grid	Anti-islanding, over/under voltage of grid, over/under frequency of grid
	Anti-voltage protection	Alarm
Environment	Operation temperature range	-25°C~40°C(50°C)
	Stored temperature	-30°C~60°C
	Relative humidity	0~99%
	Environment	Have no corrosion gas, flammable gas, oil mist, dust etc.
	Waterproof	Indoor Type Design, Non-waterproof
	Elevation	6600feet (2000m)
Size	LWH	21015373mm
Weight	KG	1.4kg
