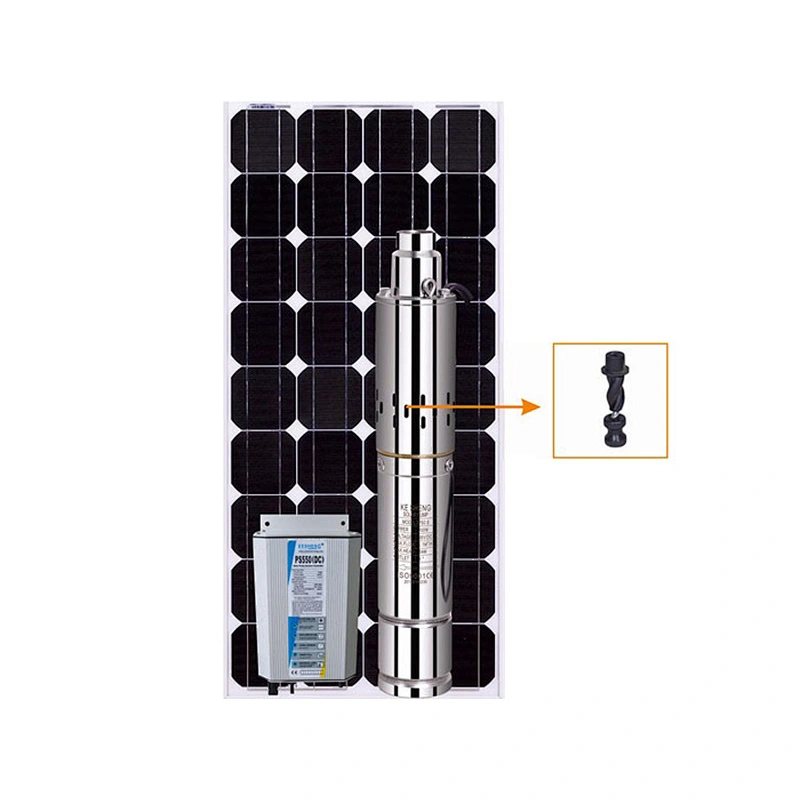

3PS Submersible pump series

3PS Submersible pump series
The basic characteristics
Oil filled permanent magnet brushless submersible motor and
pump, equipped with external control series, the function include
over voltage, over current, lack of water, pressure level, MPPT
maximum power point tracking, etc. Using screw pumps, low

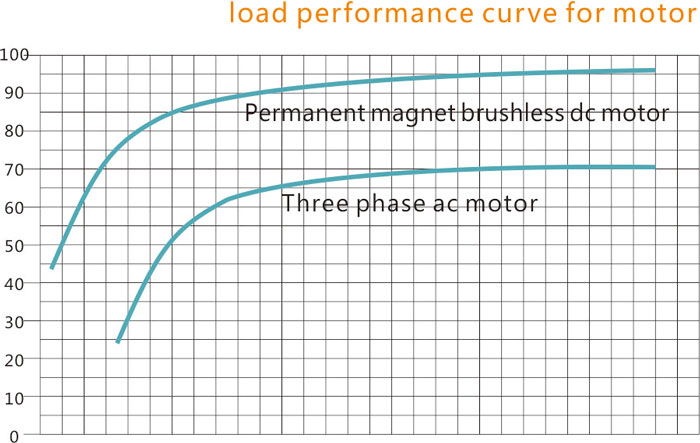

power. high lift, the efficiency increased by 25% compared with
traditional AC motor.
Environmental factors
Applicable to water temperature is below 35 ℃;
The maximum sediment concentration is 0.25%;
Maximum depth is 50 m;
For 3 inch well or more big than it.
