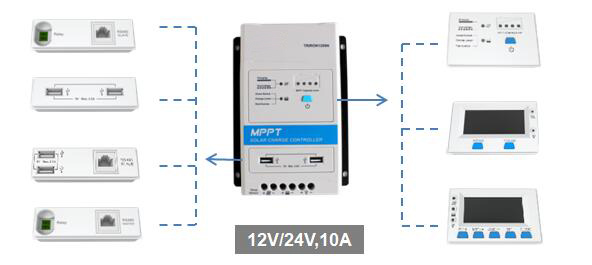

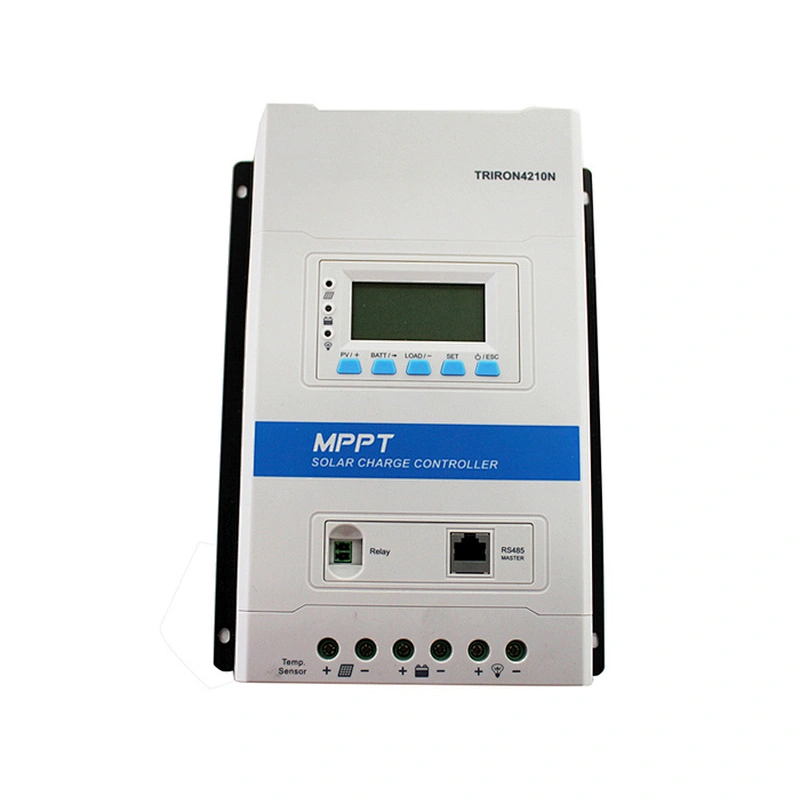

The TRIRON series controllers are modular-designedproducts based on nine MPPT solar controller models. The main unit (PowerModule) is a solar controller which can be integrated with different displayand interface modules to meet a variety of functional requirements.
Product Features:
• Self-identifying, load the driver for each module
• Modular design, varied combination to meet different requirements
• Support the hot swapping function(only for same model)
• Advanced MPPT control algorithm to minimize the MPP loss rate and loss time
• Ultra-fast tracking speed, and high tracking efficiency ≥99.5%
• Accurately tracking and recognizing of multiple MPP
• Peak conversion efficiency of 98%
• Auto limit function of charging power and charging current.
• Compatible with lead-acid batteries and lithium batteries
• Wide MPP operating voltage range
• Full load operation during the working temperature range
• Auto reduce power function when charging in high temperature
• Multiple load work modes
• Battery temperature compensation
• Real-time power statistics recording function
• Multiple LCD and LED display modules optional
• Master-slave interface module design, simultaneously view the controller and inverter operating data
• Dry contact design, remotely switch on/off external equipment
• Dual USB design, supply DC power for electronic equipment
• Perfect electronic protection function
Protection function:
• PV over current protection
• PV short circuit protection
• Lithium battery low temperature protection
• Night reverse charging protection
• Battery reverse polarity protection
• PV reverse polarity protection
• Battery over discharge protection
• Battery over heat protection
• Battery over voltage protection
• Load short circuit protection
• Load overload protection
• Controller overheating protection
