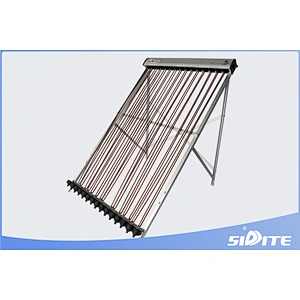

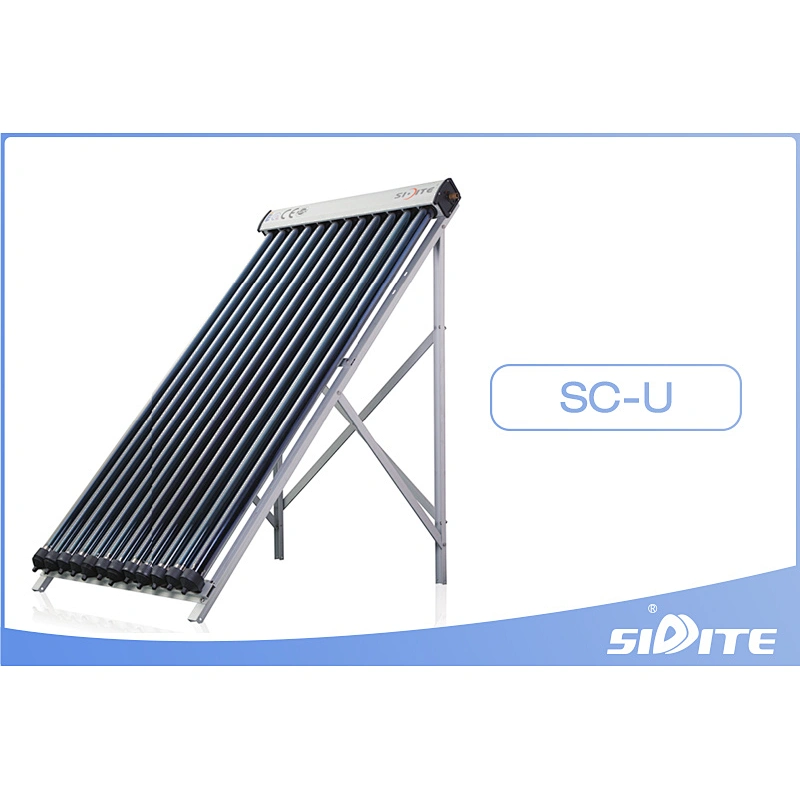

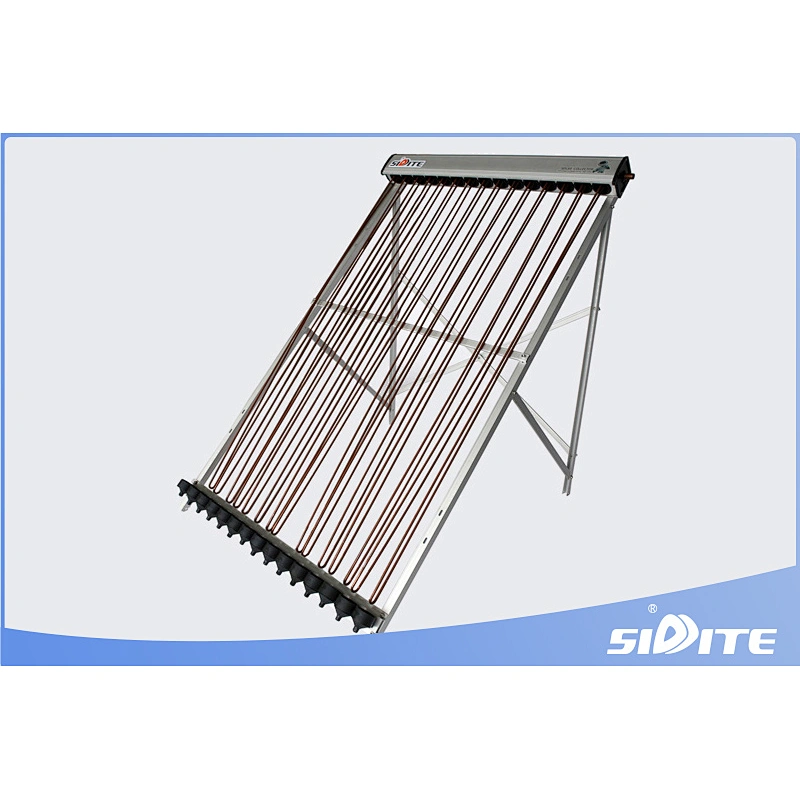

U PIPE SOLAR COLLECTOR SC-U

Model NO.: SC-U

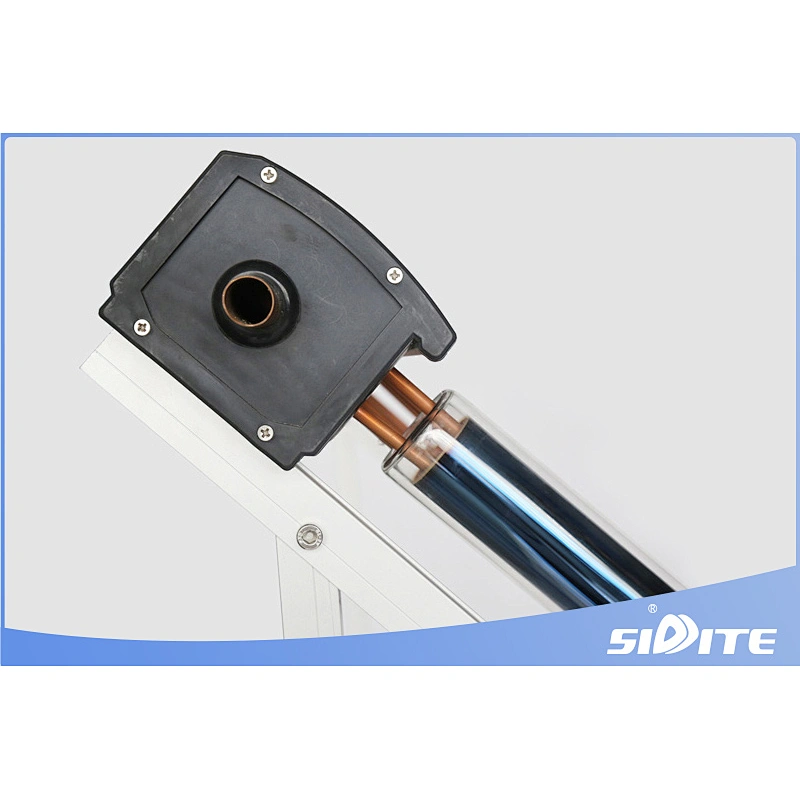

Just as the name says, U pipe solar collector. U pipe is the main feature. The vacuum tubes absorb solar radiation and transfer into heat, pass to the fin by the tube wall, and then transfer to the U pipe by the fin, U pipe absorbs heat then transfer to medium, cold medium continuously flow into inlet and heated by U pipe, then flow out from the outlet, so that obtain the heat of solar energy heating water.

Other characteristics and information please see below.

Quantity:

Product Description

DESCRIPTION

Characteristic

1.Twin-glass vacuum tubes: reliable, efficient, high temperature resistant, anti-freezing.
2.There is no water in the vacuum tube, the system will still work even the tube broken.

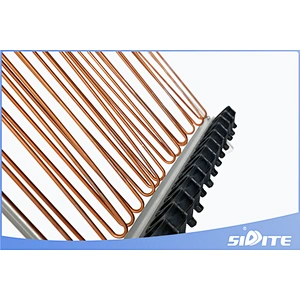

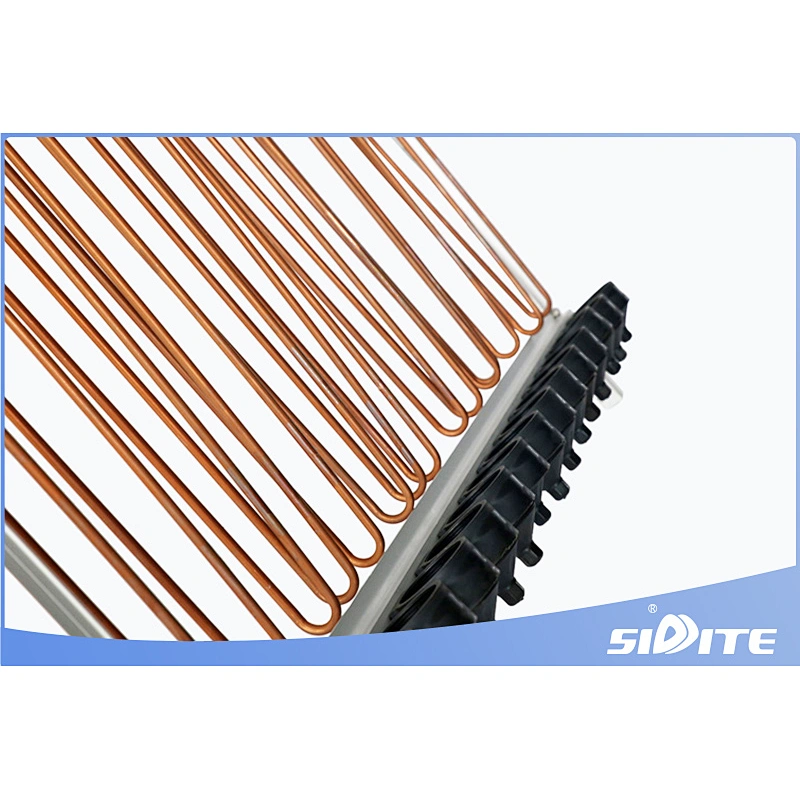

3.U pipe, efficient.

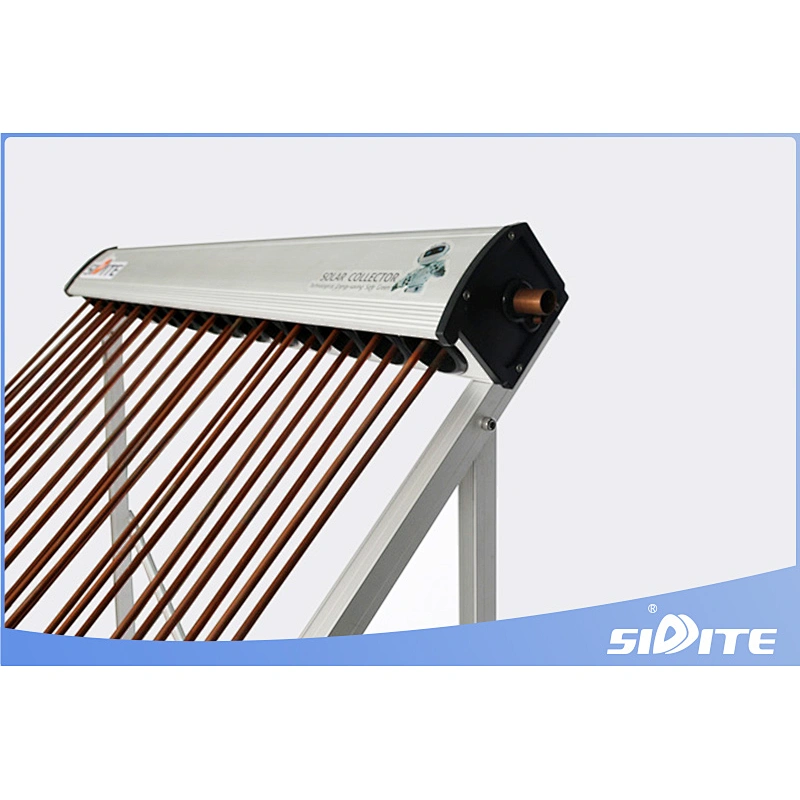

4. Aluminum manifold and bracket, corrosion resistance, easy to install. It’s suitable for flat and sloping roof.
5.Flexible Installation, installation angle from 0° to 90°, roof and wall hanging installation.
6.High temperature resistant rock wool / glass wool, high density, good thermal insulation properties.
7.High quality copper manifold, its testing pressure is 1MPa.
8.Eco and economical, improves the environment and save your fuel cost.

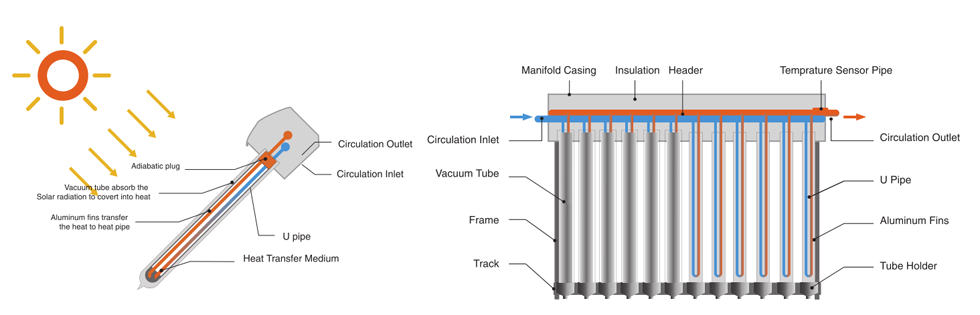

Working Principle

The vacuum tubes absorb solar radiation and transfer into heat, pass to the fn by the tube wall, and then transfer to the U pipe by the fn, U pipe absorbs heat then transfer to medium, cold medium continuously flow into inlet and heated by U pipe, then flow out from the outlet, so that obtain the heat of solar energy heating water.
