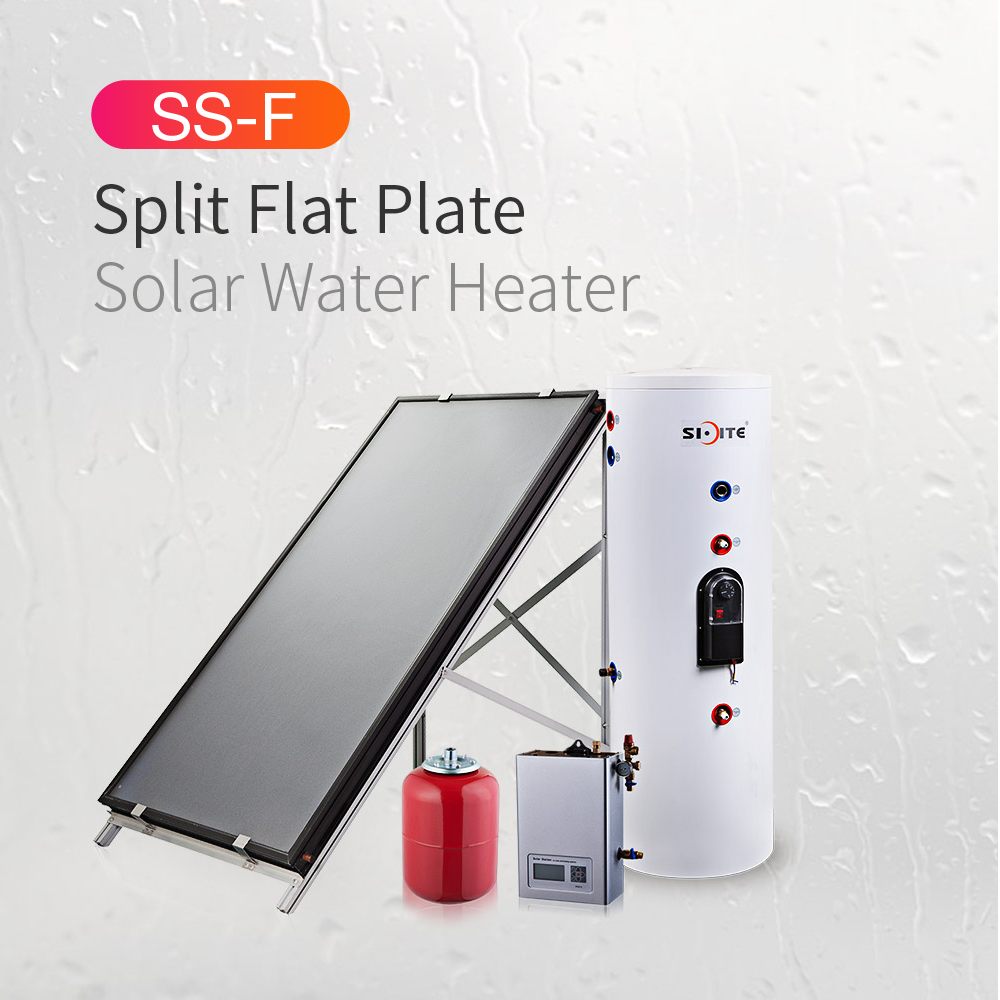

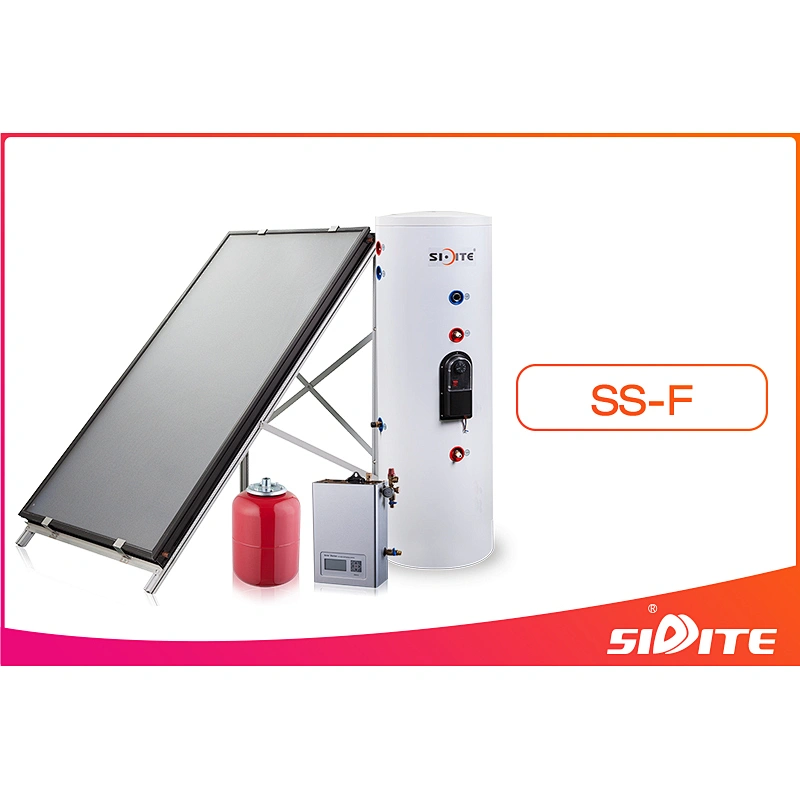

DESCRIPTION
Characteristic
1.The solar collector and water tank can be placed separately, easy to install, easy for building integration.
2.The water tank is indirect tank with copper coil exchangers, completely solve the problem of collector in freezing and harsh water area.
3.Copper coil exchangers can realize the cycle for solar energy and the cycle for electric heater or gas for supplementary energy.
4.Reliable electric back-up with protection against dry heating and thermal cut-out.

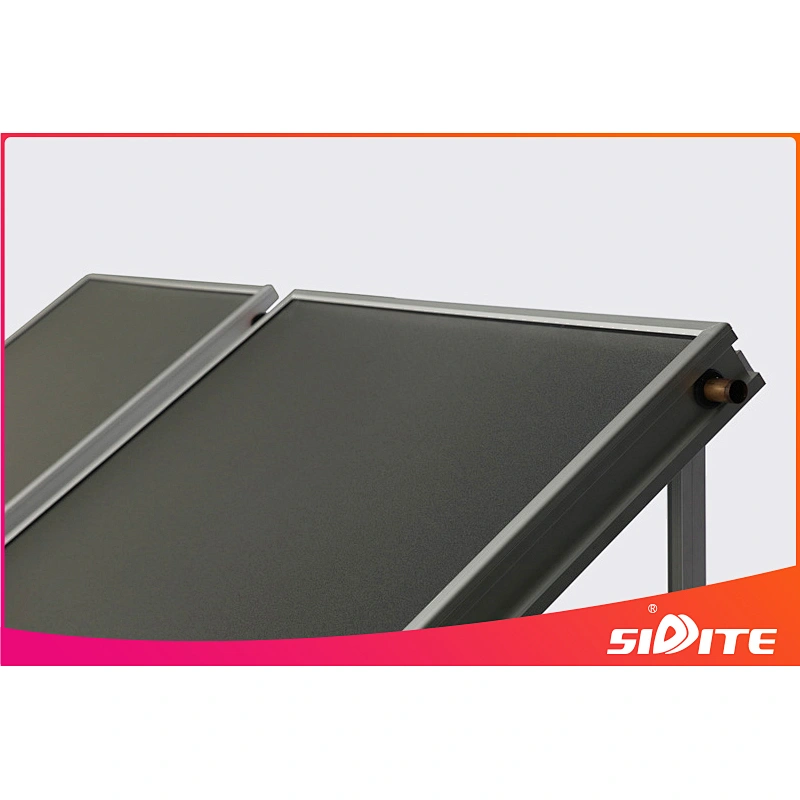

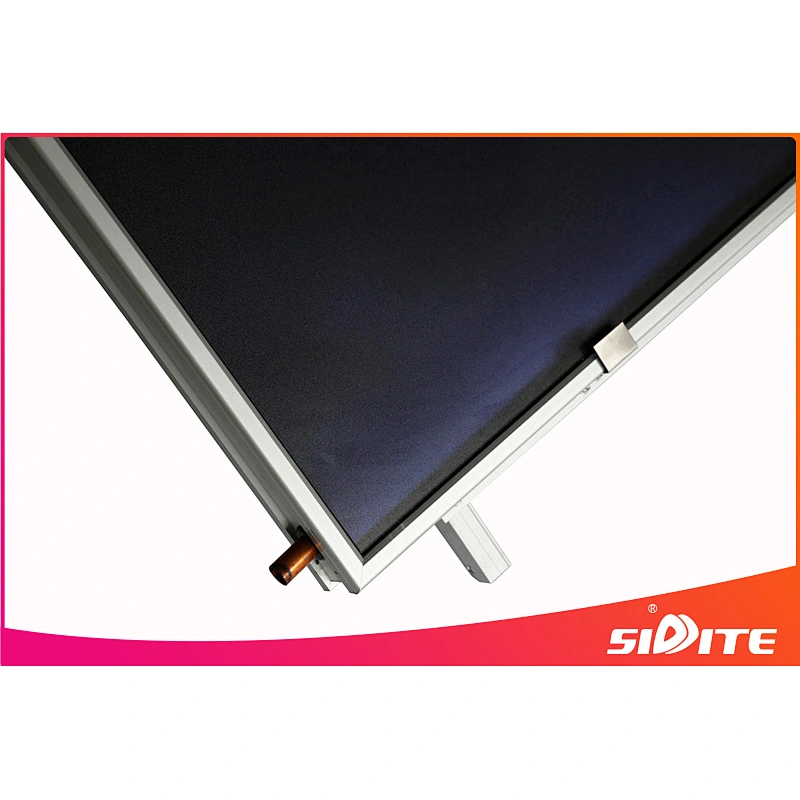

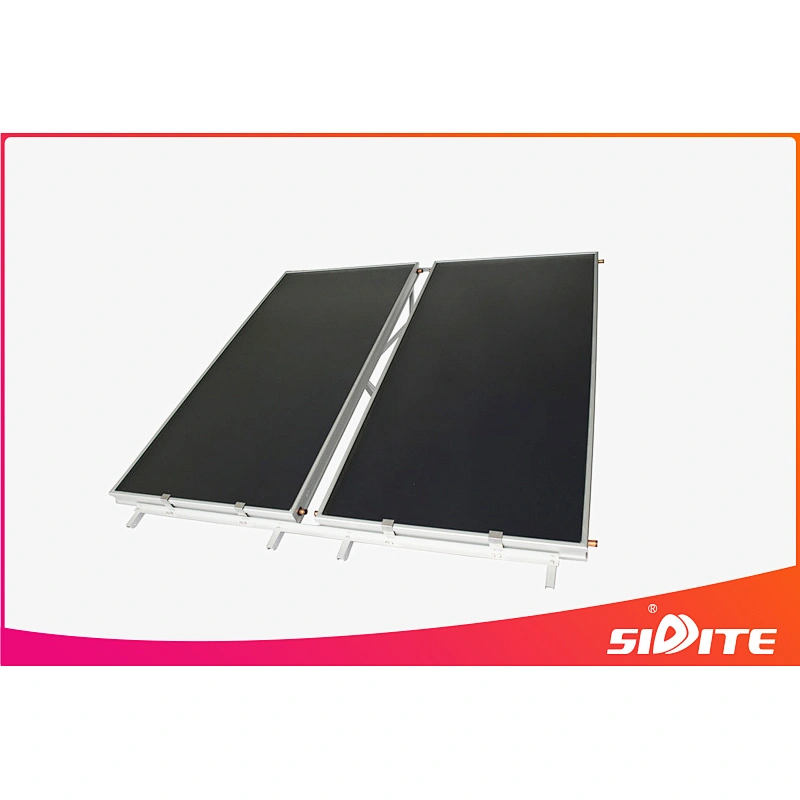

5.With high quality flat solar collector and stainless steel water tank for long service life.
6.Totally copper flow channels achieve low defect rate and easy maintenance, long service life.

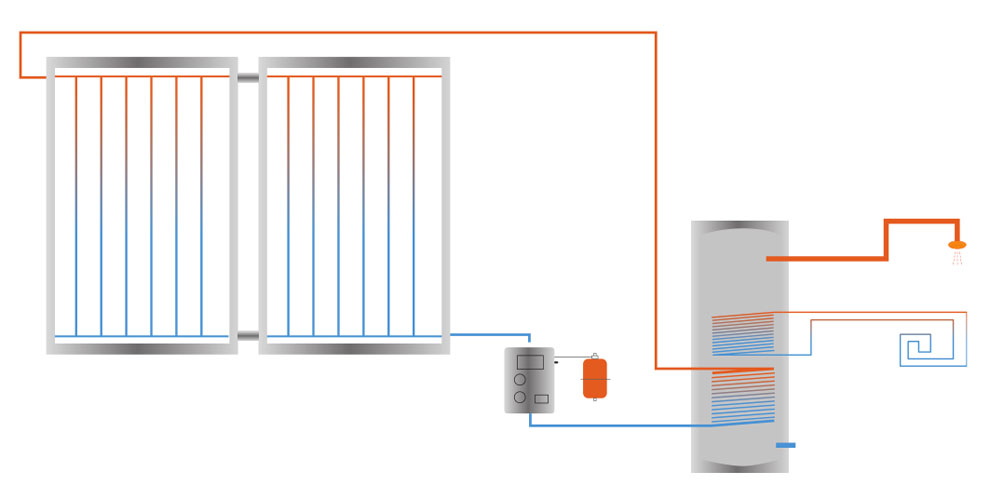

Working Principle
The SS-F series, in streamline closed circuit systems which are recommended for frost prone and poor water quality situations. Antifreeze fluid is used to circulation through the collectors. The heat collected from the panels is transferred from the fluid pipes to the water tank by a heat exchanger. The circulator is regulated by a control unit on the water heater. This ensures the optimum use of the sun’s free energy. Copper coils exchanger can realize the cycle for solar energy and the cycle for electric heater or gas for supplementary energy to ensure you always have hot water on tap at any weather.

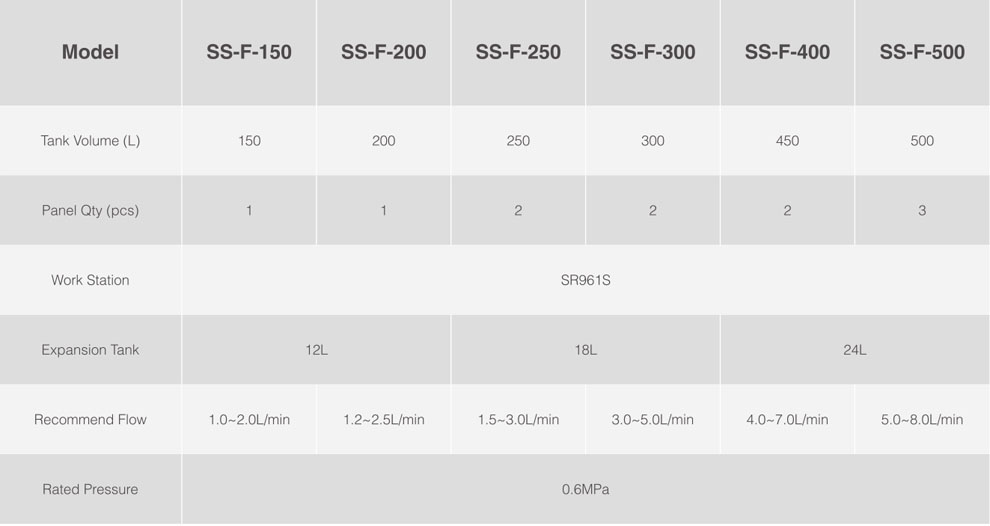

Technical Information
