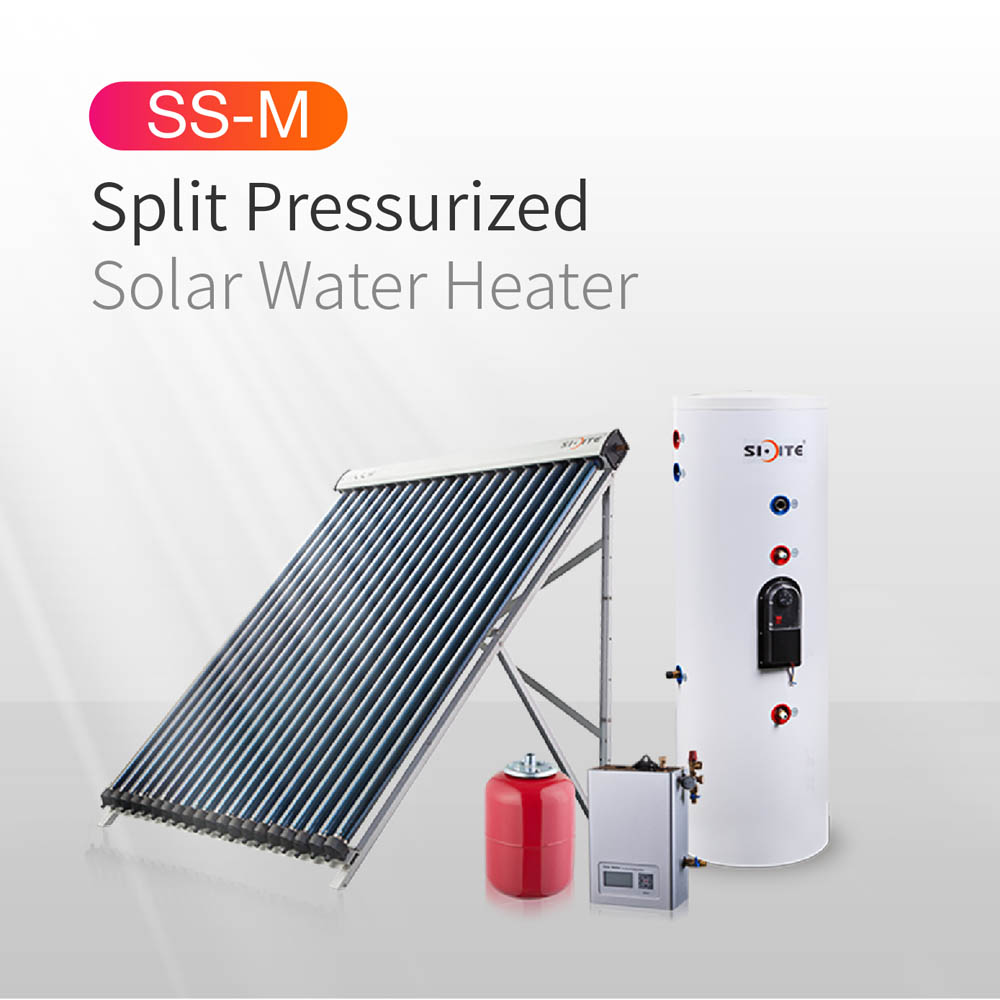

DESCRIPTION
Characteristic
1,The solar collector and water tank can be placed separately, easy to install, easy for building integration.

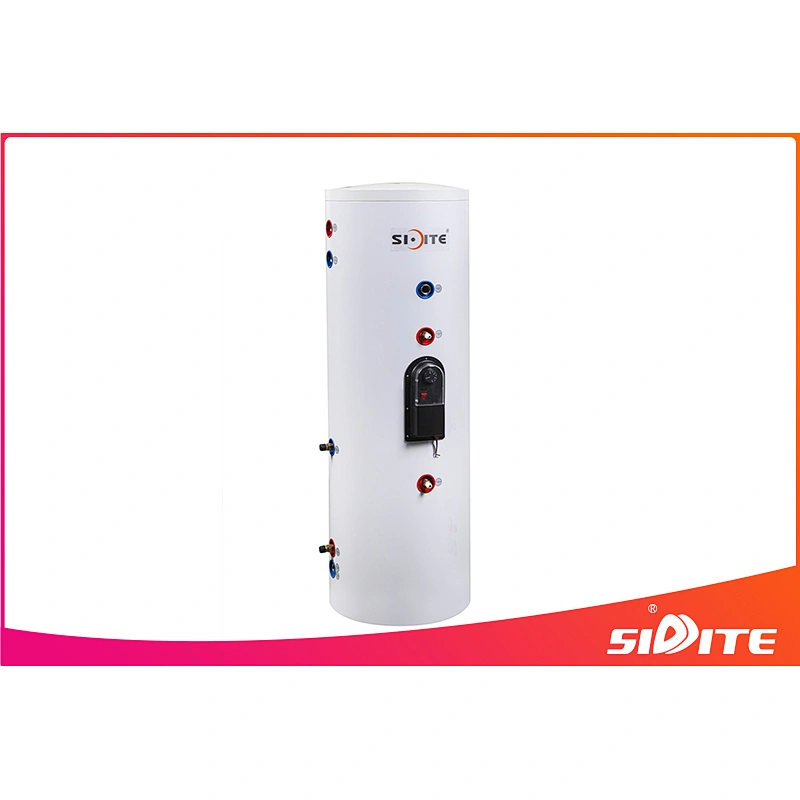

2,The water tank is indirect tank with copper coil exchangers, completely solve the problem of collector in freezing and hard water area.
3,Copper coil exchangers can realize the cycle of solar energy and the cycle of electric heater or gas for supplementary energy.
4,Reliable electric back-up with protection against dry heating and thermal cut-out.
5,Low breakdown rate and easy maintenance.
6,Easy operation and intelligent control.

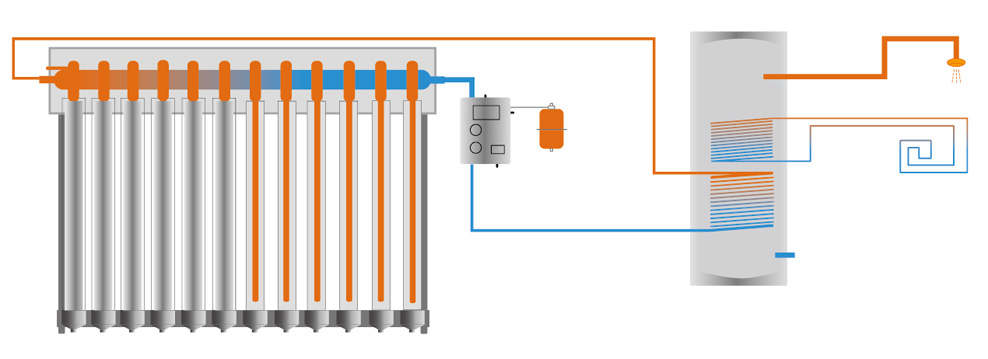

Working Principle

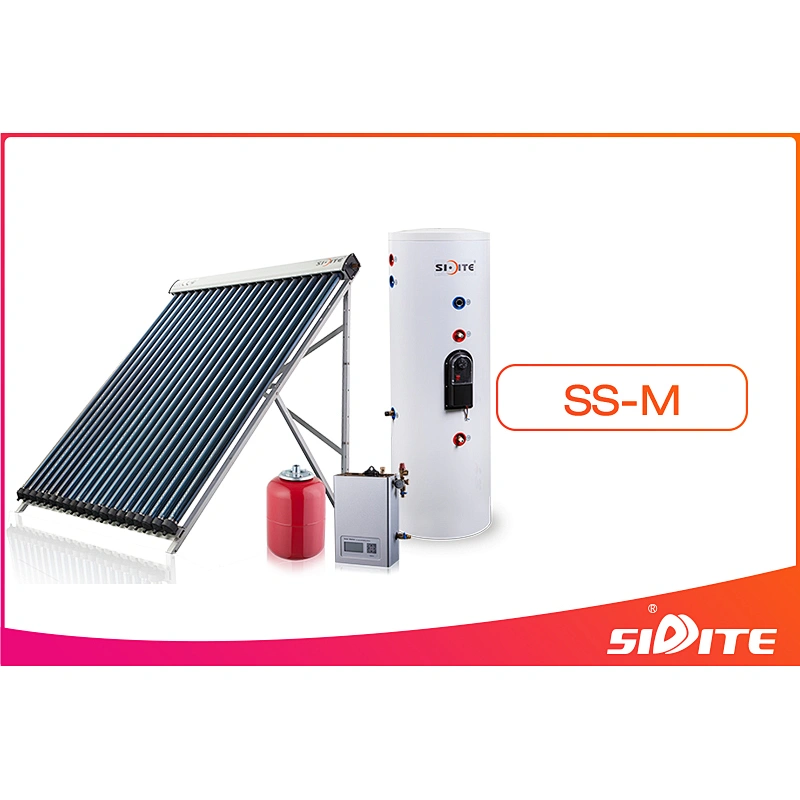

The SS-M series, in streamline closed circuit systems which are recommended for frost prone and poor water quality situations. Antifreeze fluid is used to circulation through the collectors. The heat collected from the panels is transferred from the fluid pipes to the water tank by a heat exchanger. The circulator is regulated by a control unit on the water heater. This ensures the optimum use of the sun’s free energy.
Cooper coils exchanger can realize the cycle of solar energy and the cycle for electric heater or gas for supplementary energy to ensure you always have hot water on tap at any weather.

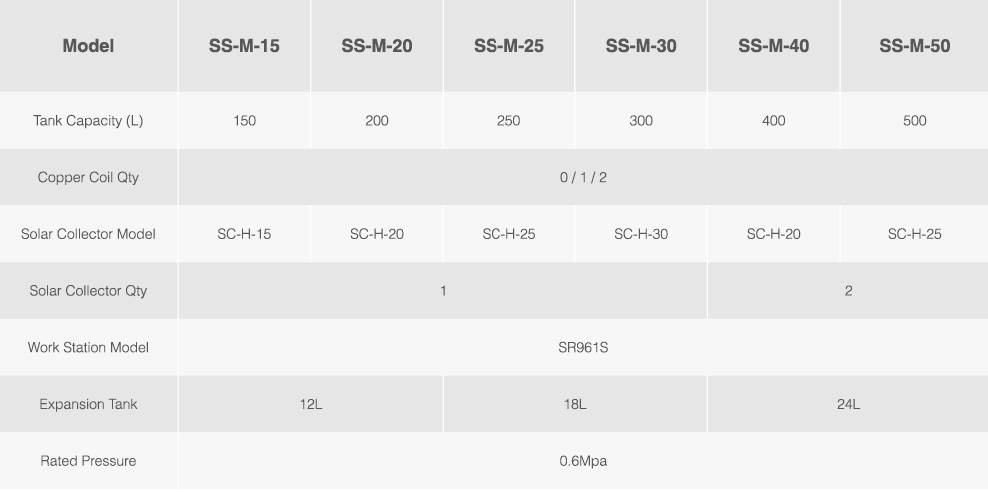

Technical Information
