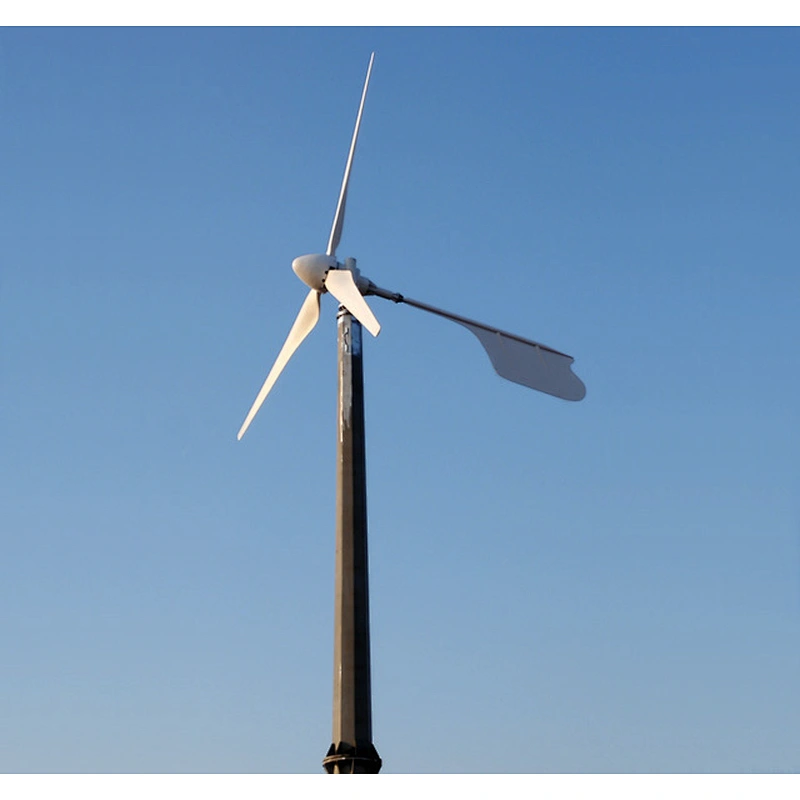

20KW GUYCABLE TOWER

Power: 20KW
Blade diameter: 10m
Material of the blades: Fiberglass-Reinforced Plastic
Rated rotor speed: 140r/min
Rated speed: 9m/s
Rated Power: 20KW
Max Power: 22KW
Output voltage: 240V/380V
Start up wind speed: 3(m/s)
Work speed: 3-30(m/s)
Security wind speed: 50(m/s)
Height of guy cable tower: 12 (m)
Generator style: 3-phase AC PM
Top quality except tower: 580kg
Service life: >15 years
Output controller system: Wind solar hybrid controller，Off--grid inverter
Mated solar panel: 240V/360V2000w-3600w
Material of enclosure: Fine cast steel
Material of magnet steel: N38SH neodymium-iron-boron 38sh
Material of stator: QZY-2/180/470
Blades shape: 3 FRP blades
Over speed protection: The wind pressure makes the rear wing's axis rotation,
Yaw automatically, electromagnetism protection
Support loads: Air conditioner、refrigerator、washing machine、water pump、electric cooker、color TV、lighting、electric fan、charging、warming、induction cooker、computor、communication equipment、electric tools.
