Power: 2000W
Blade diameter: 3.8m
Material of the blades: Fiberglass-Reinforced Plastic
Rated rotor speed: 320r/min
Rated speed: 8m/s
Rated Power: 2000W
Max Power: 2500w
Start torque(n/m): ＜0.8
Output voltage: 72V
Start up wind speed: 2.5(m/s)
Work speed: 3-25(m/s)
Security wind speed: 50(m/s)
Height of guy cable tower: 6(m)
Generator style: 3-phase AC PM
Top quality except tower: 90kg
Suggest batteries: 6pcs 12v150ah
Service life: >15 years

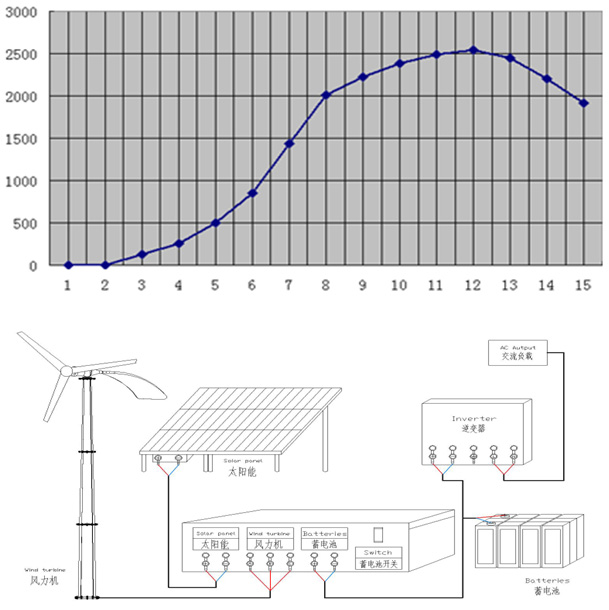

Output controller system: Wind solar hybrid controller，Off--grid inverter
Mated solar panel: 72v 600w--800w
Material of enclosure: Fine cast steel
Material of magnet steel: N38SH neodymium-iron-boron 38sh
Material of stator: QZY-2/180/470
Blades shape: 3 FRP blades
Over speed protection: The wind pressure makes the rear wing's axis rotation,
Yaw automatically, electromagnetism protection
Support loads: washing machine、water pump、electric cooker、color TV、lighting、、charging、warming、induction cooker、computer、electric tools below 1kw

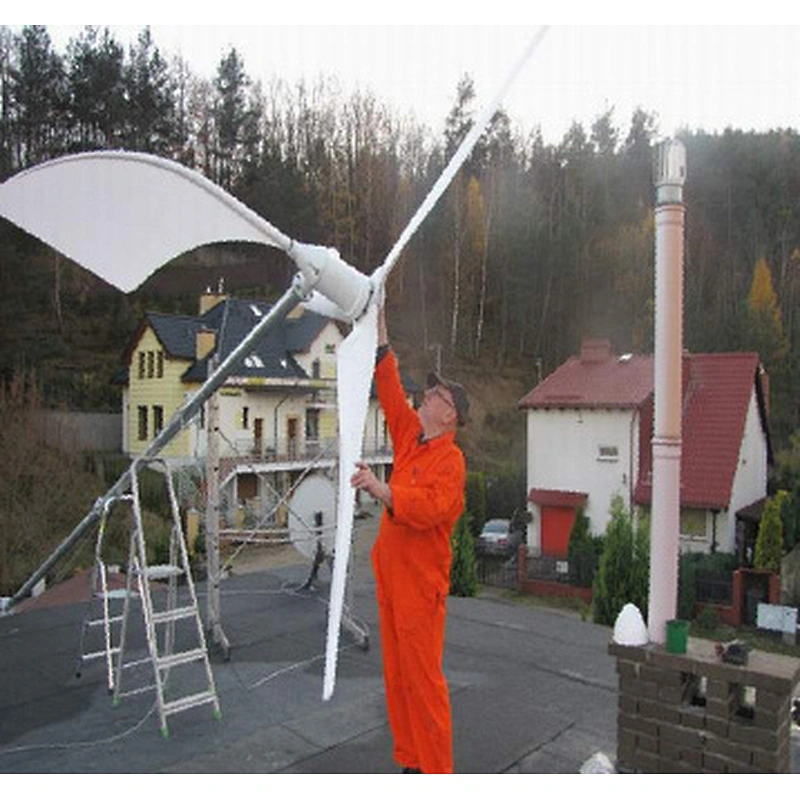

2kw GUYCABLE TOWER QUOTATION
ITEM | DESCRIPTION | QUANTITY | REMARK |
GENERATOR | Xg-2000W | 1 | Generator and tail |
BLADE | 3.8m | 1 | Blade, hub, dome and pressing plate |
CONTROLLER INVERTER | 2000WDC72VAC220V50HZ | 1 | Off grid controller and inverter |
GUYCABLE | 6M | 1 | Tower, anchor |
