Power: 600W
Blade diameter: 2.5m
Material of the blades: Fiberglass-Reinforced Plastic
Rated rotor speed: 400r/min
Rated speed: 8m/s
Rated Power: 600W
Max Power: 720w
Start torque(n/m): ＜0.3
Output voltage: 24V
Start up wind speed: 2.5(m/s)
Work speed: 3-25(m/s)
Security wind speed: 50(m/s)
Height of guy cable tower: 6 (m)
Generator style: 3-phase AC PM
Top quality except tower: 40kg
Suggest batteries: 2pcs 12v150ah
Service life: >15 years
Output controller system: controller，Off--grid inverter
Mated solar panel: 24v100w--200w
Material of enclosure: Fine cast steel
Material of magnet steel: N38SH neodymium-iron-boron 38sh
Material of stator: QZY-2/180/470
Blades shape: 3 FRP blades
Over speed protection : The wind pressure makes the rear wing's axis rotation,
Yaw automatically, electromagnetism protection
Support loads: Color TV, lighting, electric fan, charging, computer, electric power tools below 600w

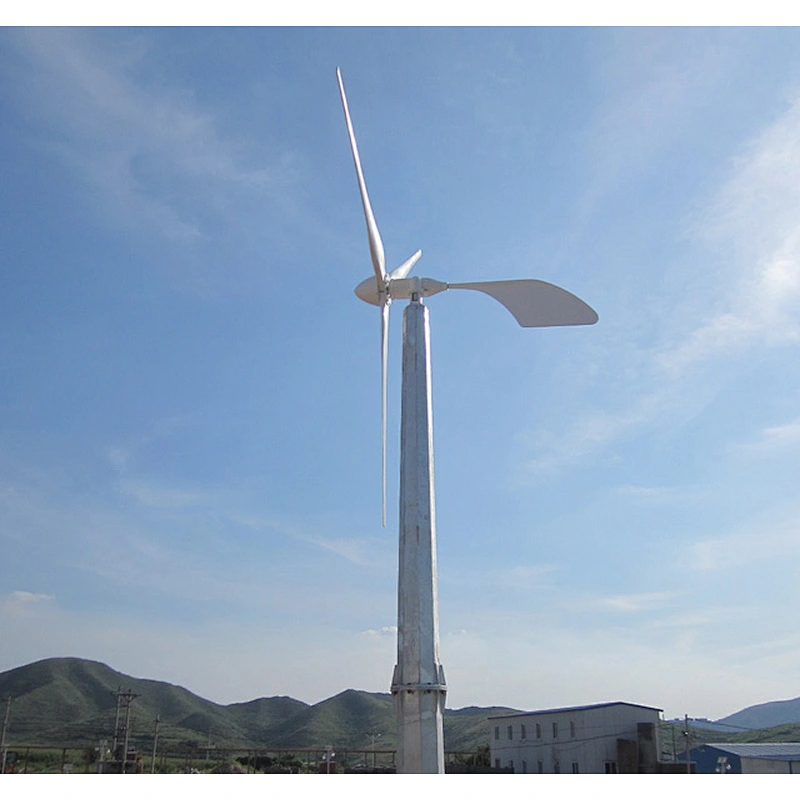

600W GUY CABLE TOWER QUOTATION
ITEM | DESCRIPTION | QUANTITY | REMARK |
GENERATOR | Xg-600W | 1 | Generator and tail |
BLADE | 2.5m | 1 | Blade, hub, dome and pressing plate |
CONTROLLER INVERTER | 600W DC24V AC220V 50HZ | 1 | Off grid controller and inverter |
GUYCABLE | 6M | 1 | Tower, anchor |
